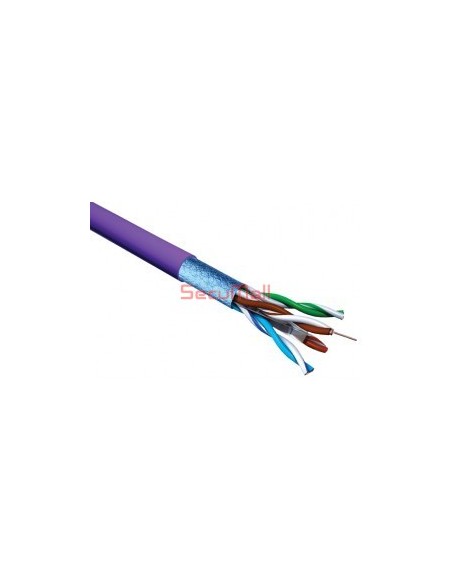

Câble réseau catégorie 6A F/UTP Bobine 500m 100 Ohms gaine LSZH 510 Mhz

    Câble réseau catégorie 6A F/UTP Bobine 500m 100 Ohms gaine LSZH 510 Mhz

    Câble réseau catégorie 6A F/UTP Bobine 500m 100 Ohms gaine LSZH 510 Mhz.

    Fil de catégorie 6A - Bobine 500m.



    Câble réseau catégorie 6A F/UTP Bobine 500m 100 Ohms gaine LSZH 510 Mhz.

    Caractéristiques du Câble réseau catégorie 6A F/UTP Bobine 500m 100 Ohms gaine LSZH 510 Mhz:

    RNIS - RNIS

    - TOKEN RING 4/16 Mbits

    - 100 VG-AnyLAN

    - TP-PMD/TP-DDI

    - ATM 155, 622 Mbits/s et 1,2Gbits

    - ETHERNET 10Base T

    - ETHERNET 100 Base Tx, 100 Base T4

    - ETHERNET 1000 Base T – GIGABIT Ethernet

    - IEEE 802.3 af – PoE (Power Over Ethernet) et DRAFT 4.0 IEEE 802.3 at - futur PoE+

    - 10 GIGABIT ETHERNET (Jusqu'à 100 m).

    Max conductors elect résistance : 95 Ω / Km Fire behaviour : IEC 60332-1 Mutual capacity (nom.) : 45 pF / m Operating temperature : - 20° C / + 70°C Characteristic impedance : 100 Ω Minimum bending radius: 8 x cable diameter Velocity of propagation : 66 % Conform to RoHS directive.

    Frequency (MHZ) ATTENUATION (dB/100m) NEXT (dB) PS NEXT (dB) ELFLEXT (dB) RETURN LOSS (dB) Standard (*) M.M.C Standard M.M.C Standard M.M.C Standard M.M.C Standard M.M.C 4 3.8 3 66.3 77 63.3 74 55.8 65 23.0 35 10 6.0 5 60.3 72 57.3 69 47.8 50 25.0 35 16 7.6 6.1 57.2 70 54.2 67 43.7 48 25.0 32.5 20 8.5 8.4 55.8 68 52.8 65 41.8 45 25 35 31.25 10.7 9.1 52.9 66 49.9 63 37.9 40 23.6 34 62.5 15.4 15 48.4 64 45.4 61 31.9 36 21.5 33 100 19.1 19 45.3 60 42.3 57 27.8 32 20.1 32 200 27.5 27 40.8 55 37.8 52 21.8 30 18 31 250 31.0 30 39.3 50 36.3 47 19.8 25 17.3 28 300 34.2 32 37.2 47 34.2 44 16.9 20 17.3 24 500 45.5 44 34.8 45 31.8 42 13.8 18 17.3 22.

    SIA-FU5104SH
